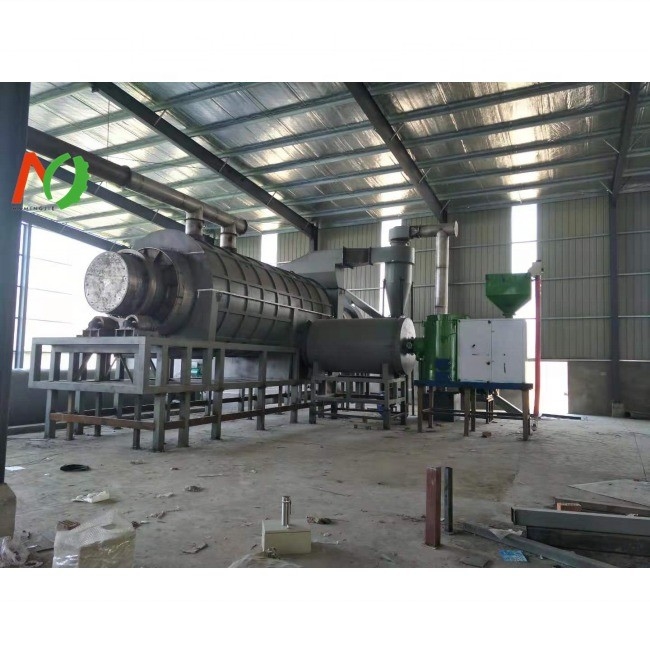

Biochar Fertilizer Carbonization Stove Making Machine for Biomass Waste

Product Details

Place of Origin: HEN

Certification: ISO

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: $71,000.00/sets 1-1 sets

Packaging Details: 40 HC*2

Supply Ability: 10 Set/Sets per Month

Get Best Price

Product Details

Product Description

Highlight:

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	Ordinary Product
Warranty Of Core Components:	1 Year	Core Components:	Carbonization Reactor, Condensers, Dedusting System
Effective Volume:	4/6/8m3	Dimension(LWH):	29m12m6m
Voltage:	220v/380v	Power:	4 KW
Warranty:	1 Year	Key Selling Points:	Competitive Price
Applicable Industries:	Manufacturing Plant, Energy & Mining, Other	Showroom Location:	None
Weight (KG):	30000	Name:	Biochar Equipment
Capacity:	500kg/h	Used For Material:	Rice Husk/Coconut Shell/Sawdust/Wood Chips
Finnal Production:	Biochar/tar&wood Vinegar/syngas	Reactor Structure:	Dual Cylinder
Material Of Reactor:	304 Stainless Steel	Working Method:	Fully Continuous
Labors Required:	2 Workers/Shift	Service:	Installation
Port:	Qingdao

Condition:	New
Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided
Marketing Type:	Ordinary Product
Warranty Of Core Components:	1 Year
Core Components:	Carbonization Reactor, Condensers, Dedusting System
Effective Volume:	4/6/8m3
Dimension(LWH):	29m12m6m
Voltage:	220v/380v
Power:	4 KW
Warranty:	1 Year
Key Selling Points:	Competitive Price
Applicable Industries:	Manufacturing Plant, Energy & Mining, Other
Showroom Location:	None
Weight (KG):	30000
Name:	Biochar Equipment
Capacity:	500kg/h
Used For Material:	Rice Husk/Coconut Shell/Sawdust/Wood Chips
Finnal Production:	Biochar/tar&wood Vinegar/syngas
Reactor Structure:	Dual Cylinder
Material Of Reactor:	304 Stainless Steel
Working Method:	Fully Continuous
Labors Required:	2 Workers/Shift
Service:	Installation
Port:	Qingdao

Biochar Fertilizer Carbonization Stove Making Machine for Biomass Waste

Products Description

Biomass carbonization is a process that involves heating biomass, such as wood, agricultural waste, or other organic matter, in the absence of oxygen to produce a high-carbon content material known as biochar. This process is also known as pyrolysis, and it can be done using various methods, including slow pyrolysis, fast pyrolysis, and torrefaction.

During the process of biomass carbonization, the biomass is heated to temperatures ranging from 300 to 800 degrees Celsius. This causes the organic matter to break down into gases, liquids, and solids. The gases and liquids are typically collected and used as fuel, while the solid residue, which is mainly carbon, is collected as biochar.

Biochar has a high carbon content and can be used as a soil amendment, as it helps to improve soil quality, fertility, and water retention. It can also be used as a source of energy or as a carbon sink, as it can be stored for long periods of time and can help to reduce greenhouse gas emissions.

Applicable Materials

Model for Choose

Model	MJT-500	MJT-1000	MJT-2000	MJT-3000
Reactor Structure	Dual Cylinder	Dual Cylinder	Dual Cylinder	Dual Cylinder
Reactor Material	304 Stainless Steel	304 Stainless Steel	304 Stainless Steel	304 Stainless Steel
Input Capacity	300-500KG/H	800-1000KG/H	1500-2000KG/H	2500-3000KG/H
Feedstock size	<20mm	<20mm	<20mm	<20mm
Feedstock moisture	<15%	<15%	<15%	<15%
Charcoal output ratio	28-35%	28-35%	28-35%	28-35%
Working Method	Fully Continuous	Fully Continuous	Fully Continuous	Fully Continuous
Fuel Consumption	35-50m³ Natural Gas for initial Heating	40-60m³ Natural Gas for initial Heating	60-80m³ Natural Gas for initial Heating	80-100m³ Natural Gas for initial Heating
Land required	L35W12H6m	L35W12H7m	L45W15H7m	L45W15H7m

Final Product & Application

Biochar/Charcoal

Used as soil conditioner, carbon sequestration, improve the quality of soil

Used as fuel for industry heating and cooling or BBQ

Can be reprocessed into activated carbon, widely used in the smelting, chemical fields.

Tar&Wood Vinegar

Widely used as a crop insecticide, make leaf surface fertilizer

Syngas

Can be recycled to heat the carbonization host.

By this way, you can reduce a lot of fuel costs.

Company Profile

Henan Mingjie Environmental Equipment Co., Ltd is a high-tech environmental enterprise, covering R&D, manufacturing , sales and exporting, We are committed to provide comprehensive solution for solid waste recycling , specializing in waste tires, waste plastics, biomass waste, and oil sludge reprocessing equipment, to get fuel oil, biochar and other renewable energy.

With almost 20 years manufacturing experience, a professional team for foreign trade and after-sale service, we take “ To Create Sustainable Value for Clients “ as pursuit. With abundant experience and foreseeing ability of this industry, we will continuously to provide excellent service for clients.

As the manufacturer, our main products currently include pyrolysis plant, distillation plant and carbonization plant:

Pyrolysis Plant:

Pyrolysis plant can convert waste tire, plastic, oil sludge, medical waste, etc. into pyrolysis oil, carbon black and syngas.

Distillation Plant:

Distillation plant can convert pyrolysis oil, used oil( engine oil, transformer oil,, lubricating oil) into diesel (non-standard) or gasoline.

Carbonization Plant:

Carbonization plant can convert biomass ( Rice husk, Woody waste, Straw, Coconut shell, Jute rod, Sludge, etc.) into biochar/charcoal, tar&wood vinegar, syngas.
