Name: Small Plastic to Oil Machine Pyrolysis Equipment for Recycling Rubber and Plastic
Brand: Henan Mingjie Environmental Equipment Co., Ltd.
SKU: MJ-2
Availability: InStock

Product Details

Place of Origin: Henan, China

Brand Name: MINGJIE

Certification: CE Certificate

Model Number: MJ-2

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: $40,000.00/sets 1-1 sets

Packaging Details: ONE 40HC CONTAINER FOR PER home model pyrolysis test machine MJ-2 pyrolysis machinr for selling

Supply Ability: 10 Set/Sets per Month

Get Best Price

Product Details

Product Description

Highlight:

Condition:	New	Applicable Industries:	Building Material Shops, Manufacturing Plant, Farms, Printing Shops, Construction Works , Energy & Mining, Other
Showroom Location:	None	Type:	Environmental Equipment
Warranty:	1 Year	Production Capacity:	Other
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Marketing Type:	New Product 2023	Warranty Of Core Components:	1 Year
Core Components:	Pressure Vessel, Motor, Other, Bearing, Gear, Pump, Engine, Gearbox, Other	Weight (KG):	15000 Kg
Raw Material:	Q245R Boiler Steel	Product Name:	Skid Mounted Pyrolysis Plant
Capacity:	1-2Tons/Batch	Application:	Plastic
Machinery Type:	Waste Recyling	Operation:	Batch Type
Final Product:	Fuel Oil, Carbon Black And Combustible Gas	Port:	Qingdao

Condition:	New
Applicable Industries:	Building Material Shops, Manufacturing Plant, Farms, Printing Shops, Construction Works , Energy & Mining, Other
Showroom Location:	None
Type:	Environmental Equipment
Warranty:	1 Year
Production Capacity:	Other
Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided
Marketing Type:	New Product 2023
Warranty Of Core Components:	1 Year
Core Components:	Pressure Vessel, Motor, Other, Bearing, Gear, Pump, Engine, Gearbox, Other
Weight (KG):	15000 Kg
Raw Material:	Q245R Boiler Steel
Product Name:	Skid Mounted Pyrolysis Plant
Capacity:	1-2Tons/Batch
Application:	Plastic
Machinery Type:	Waste Recyling
Operation:	Batch Type
Final Product:	Fuel Oil, Carbon Black And Combustible Gas
Port:	Qingdao

Small Plastic to Oil Machine Pyrolysis Equipment for Recycling Rubber and Plastic

I. TECHNICAL PARAMETERS (TAKE THE DIESEL FUEL OIL AS THE REFERENCE)

Model	MJ-2 Batch Type Pyrolysis Plant
Applicable Solid Waste	Used Plastics(Except for PET&PVC)/Aluminium Film/Medical Blister Waste...
Reactor Size	D1400L5500mmT12mm
Reactor Material	Q245R Boiler Steel
Input Processing Capacity	3-4 TPD, 2 Batches
Operation	Batch
Final Extracted Products	Pyrolysis Oil+Carbon Black+Steel Wires(Only for Tires)+Combustible Gas
Required Energy Supply	Electric and Fuel
Power Consumption	12 kw/h
Diesel Consumption	120 Liter
Rotating Speed	0.4turn/min
Inside Pressure	<0.04mpa
Land Required	30 square meter
Workers Required	2 workers, two shifts
Loading Plan	One 40HC Container

II.PROJEXT DISPLAYS:

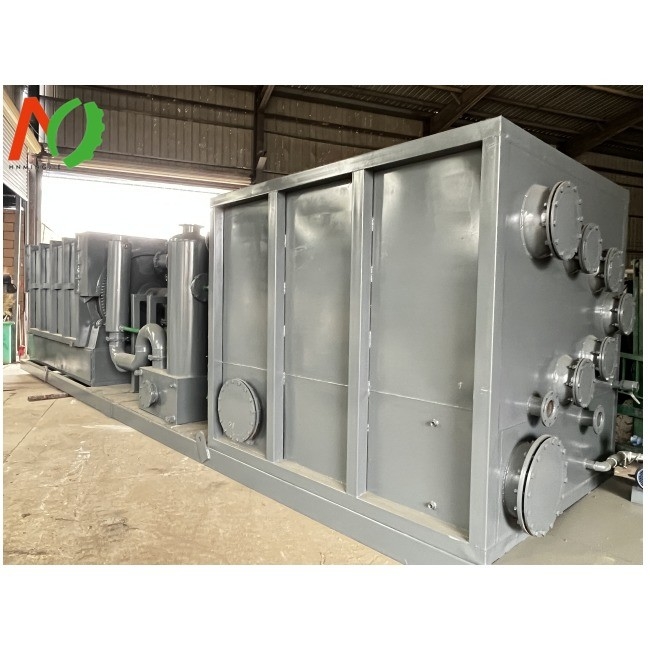

Small Plastic to Oil Machine Pyrolysis Equipment for Recycling Rubber and Plastic 2

Small Plastic to Oil Machine Pyrolysis Equipment for Recycling Rubber and Plastic 3

III. WHAT DOES OUR SCOPES OF SUPPLY INCLUDE?

No.	Items	Specification
1	Reactor/1set	D1400L400012 mm Material: Q245R boiler steel
2	Diesel Burners/2 sets	Heating capacity: 300,000Kcal/h Two sections of fire
3	Reactor Casing/1 set	φ1710*3300 Insulation of the reactor, inside put the high temperature ceramic wool and refractory material
4	Reactor base/1 set	Reactor supporter , and heating burner, reduce civil works , shorten installation time
5	Gas separator/1 set	Φ530*1000mm Separating heavy oil gas and light oil gas
6	Integrated Condenser/1 set 225020002800	Oil gas condenser oil storage tank Water seal
7
8
9	Flue tube condenser/1 set	Φ320*1500mm Cool down the smoke, protect draft fan and better meet environmental standards
10	Draft fan/1 set	For smoke flowing to dedustor Power: 4KW
11	Desulfurization Tower/1 set	Ø5302300mm Φ3252000mm
12	Atomized water tank/1 set
13	Chimney/1 set
14	Electric control cabinet/1 set	Complete controlling of the electrical parts in the system Temperature & Pressure display, Over temperature & pressure alarm
15	Syngas burner/2 sets	For combustible gas burning
16	Air blower/1 set	For syngas burning Power: 2.2kw
17	Water pump/1 set	2.2KW
18	Oil pump/1 set	2.2KW
