Energy Mining Manufacturing Fully Continuous Carbonization Plant for Woody Waste

Product Details

Place of Origin: Henan, China

Brand Name: Mingjie

Certification: CE ISO

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: $88,500.00/sets 1-1 sets

Packaging Details: 20 HC ,40 HC, 40 FR CONTAINER
Small Pyrolysis Machine Convert Plastic tyre to Fuel Mini Biomass Pyrolysis Plant

Supply Ability: 4 Set/Sets per Month

Get Best Price

Product Details

Product Description

Highlight:

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	Hot Product 2019
Warranty Of Core Components:	1 Year	Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
Effective Volume:	1cbm	Dimension(LWH):	L35W12H7m
Voltage:	Customized	Power:	41.2kw/h
Warranty:	1 Year	Key Selling Points:	Long Service Life
Applicable Industries:	Food & Beverage Factory, Farms, Energy & Mining	Showroom Location:	China
Weight (KG):	12000	Model:	MJT-1000
Raw Material:	Coconut Shell Wood Sawdust Briquette	Usage:	Forestry Biomass Charring Making
Final Product:	Charcoal Bio-char	Type:	Continuous Carbonization
Advantage:	Continuous Working Environment Friendly	Capacity:	0.8-1T/H
Color:	Customization Support	Fuel:	Firewood Coal Gas Natural Gas
Port:	Qingdao

Condition:	New
Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided
Marketing Type:	Hot Product 2019
Warranty Of Core Components:	1 Year
Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
Effective Volume:	1cbm
Dimension(LWH):	L35W12H7m
Voltage:	Customized
Power:	41.2kw/h
Warranty:	1 Year
Key Selling Points:	Long Service Life
Applicable Industries:	Food & Beverage Factory, Farms, Energy & Mining
Showroom Location:	China
Weight (KG):	12000
Model:	MJT-1000
Raw Material:	Coconut Shell Wood Sawdust Briquette
Usage:	Forestry Biomass Charring Making
Final Product:	Charcoal Bio-char
Type:	Continuous Carbonization
Advantage:	Continuous Working Environment Friendly
Capacity:	0.8-1T/H
Color:	Customization Support
Fuel:	Firewood Coal Gas Natural Gas
Port:	Qingdao

Energy Mining Manufacturing Fully Continuous Carbonization Plant for Woody Waste

Product Overview

What is the carbonization?

Biomass carbonization refers to the thermal degradation process of biomass under the environment of high temperature without oxygen, in which volatiles are released and carbon is enriched. The carbonized product is biochar/charcoal, which can be used as soil conditioner or fuel.

PRODUCT SPECIFICATIONS

Model	MJT-500	MJT-1000	MJT-2000	MJT-3000
Reactor Structure	Dual Cylinder	Dual Cylinder	Dual Cylinder	Dual Cylinder
Input Capacity	300-500KG/H	800-1000KG/H	1500-2000KG/H	2500-3000KG/H
Feedstock size	<20mm	<20mm	<20mm	<20mm
Feedstock moisture	<15%	<15%	<15%	<15%
Charcoal output ratio	28-35%	28-35%	28-35%	28-35%
Working Method	Fully Continuous	Fully Continuous	Fully Continuous	Fully Continuous
Fuel Consumption	35-50m³ Natural Gas for initial Heating	40-60m³ Natural Gas for initial Heating	60-80m³ Natural Gas for initial Heating	80-100m³ Natural Gas for initial Heating
Land required	L35W12H6m	L35W12H7m	L45W15H7m	L45W15H7m
Final product	Charcoal/Biochar, Tar&Wood Vinegar, Syngas

FEATURES AT A GLANCE

Final Product & Application

Biochar/Charcoal

1. Used as soil conditioner, carbon sequestration, improve the quality of soil 2. Used as fuel for industry heating and cooling or BBQ 3. Can be reprocessed into activated carbon, widely used in the smelting, chemical fields.

Wood vinegar & tar

Widely used as a crop insecticide, make leaf surface fertilizer

Syngas

1. Can be recycled to heat the carbonization host. 2. By this way, you can reduce a lot of fuel costs.

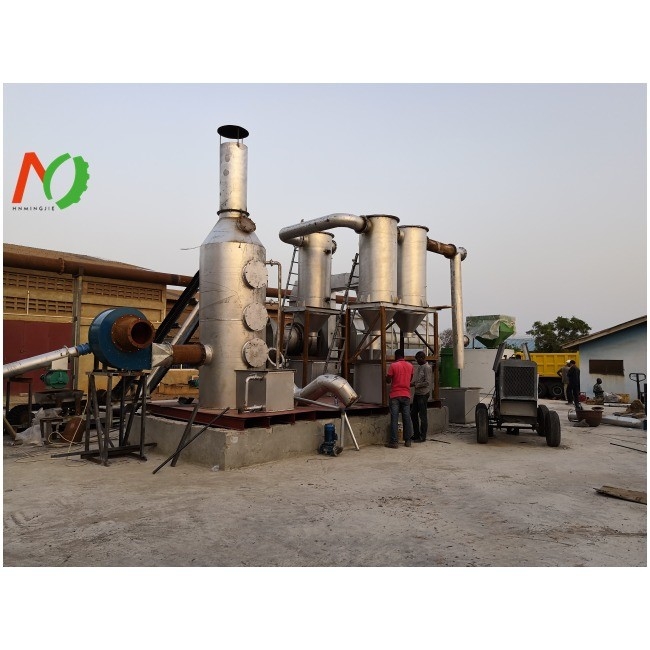

Successful Project

Project in Japanese

Project in Tanzania

Project in China
