Plastic Tyre Pyrolysis Oil Distillation Machine for Mini Oil Purification System

Product Details

Place of Origin: Henan, China

Brand Name: MINGJIE

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: $28,000.00/sets 1-1 sets

Packaging Details: 1*40'HC

Supply Ability: 8 Set/Sets per Month

Get Best Price
Highlight:
Applicable Industries:
Manufacturing Plant, Energy & Mining, Other
Showroom Location:
Thailand
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
New Product 2021
Warranty Of Core Components:
1 Year
Core Components:
PLC
Condition:
New
Voltage:
380V
Power:
12KW
Dimension(L*W*H):
D1200*H2200mm(Size Of Reactor)
Weight:
15000 Kg
Warranty:
1 Year
Raw Material 1:
Tyre/tire/rubber
Raw Material 2:
Plastic
Raw Material 3:
Medical Waste
End Product 1:
Pyrolysis Oil
End Product 2:
Steel Wire
End Product 3:
Carbon Black
End Product 4:
Syngas
Advantages:
Convenient Transportation And Installation
Color:
Customers' Requirement
Capacity:
1-2TPD
Port:
Qingdao Shanghai Lianyungang Guangzhou
Applicable Industries:
Manufacturing Plant, Energy & Mining, Other
Showroom Location:
Thailand
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
New Product 2021
Warranty Of Core Components:
1 Year
Core Components:
PLC
Condition:
New
Voltage:
380V
Power:
12KW
Dimension(L*W*H):
D1200*H2200mm(Size Of Reactor)
Weight:
15000 Kg
Warranty:
1 Year
Raw Material 1:
Tyre/tire/rubber
Raw Material 2:
Plastic
Raw Material 3:
Medical Waste
End Product 1:
Pyrolysis Oil
End Product 2:
Steel Wire
End Product 3:
Carbon Black
End Product 4:
Syngas
Advantages:
Convenient Transportation And Installation
Color:
Customers' Requirement
Capacity:
1-2TPD
Port:
Qingdao Shanghai Lianyungang Guangzhou
Plastic Tyre Pyrolysis Oil Distillation Machine for Mini Oil Purification System
PRODUCT DESCRIPTION

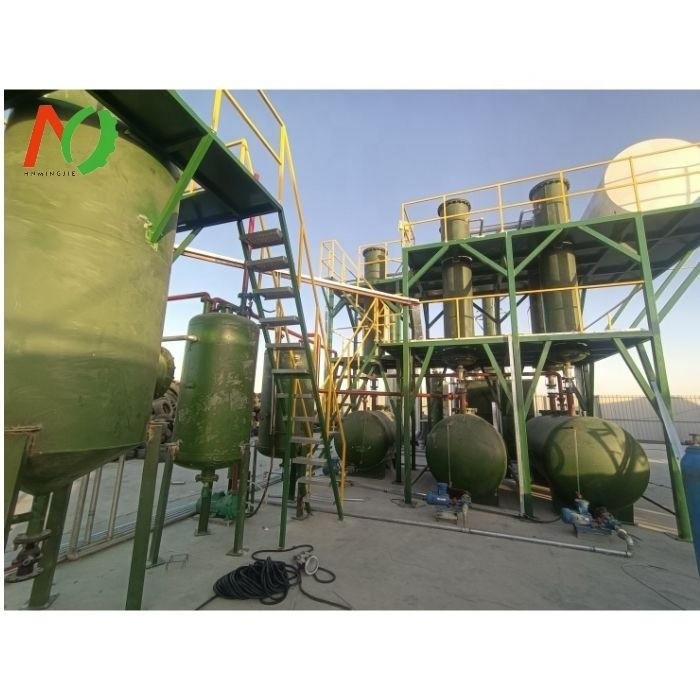

Plastic Tyre Pyrolysis Oil Distillation Machine for Mini Oil Purification System 0

Distillation plant

Distillation system to process pyrolysis oil, used oil into diesel, aim to improve the value of the oil.
* Pyrolysis Oil Distillation Plant
* Used Engine Oil Distillation Plant
* Waste Oil Refining To Diesel Plant

Model
MJZ-2
MJZ-3
MJZ-3
MJZ-10
MJZ-20
Capacity
1-2T/Batch
3T/D
6T/D
10T/D
20T/D
Power Consumption
10kw
15kw
22.5kw
42kw
46kw
Operation
Batch
Batch
Batch
Batch
Batch
Raw material
Used engine oil, pyrolysis oil, used transformer oil, used lubricating oil
Final products
Non-standard diesel, diesel oil, base oil
Oil yield rate
80-85%
Working pressure
Negative
Construction
Vertical type
Cooling method
Water cooling
Fuel for heating
LPG, Diesel, Natural gas


Distillation Working Process Description


1. Pump the pyrolysis oil into the distillation reactor. 2. Heat the reactor and pyrolysis oil will become the oil gas.Light Oil gas will go to the light fraction condenser and be liquefied to oil and stored in the light oil tank. 3. Pump light oil from the tank to the pickling tank. pickling tank add the concentrated sulfuric acid which can remove the sulfide and colloid in the oil. 4. After pickling washing,pump the oil into the alkaline washing tank for neutralization and remove the oxygenated chemicals sulfide.It use the sodium hydroxide as the chemical here.
5. After alkaline washing,pump the oil into the activated clay tank for adsorption the solid impurities, here use the activate clay as chemical Meantime the boiler provide the heat for this process. 6. After activated clay adsorption process. pump the oil and go through the plate-and-frame filter press to get the final clean and transparent non standard diesel. 7. The uncondensed syngas will be out from the light oil tank and be purified and cleaned in the hydroseal, after that one part will be recycled as fuel for the reactor heating, another extra syngas will be burned out directly for release the pressure. 8. The remain of heavy oil fraction will be pumped out after distillation process and go through the heavy oi condenser and stored in the heavy oil tank. 9. Emission will come out from furnace and go through the flue condenser for cool down the temperature.After that to through the dedusting scrubber for cleaning by water washing ceramic ring adsorption and water spray then the emission can be discharged into the air.
10.The water pool keep providing the cool water for the oil condenser and flue condenser. The cooling tower cool down the temperature of the hot water from the condensers.

Plastic Tyre Pyrolysis Oil Distillation Machine for Mini Oil Purification System 1


Final product


Non-standard diesel
1. Be used on low speed heavy-duty diesel engine, such as large agricultural machine, mining machine, ship, power generator, etc.; 2. Be used on the automobile engine by mixing with standard diesel (3:1); 3. Be used as fuel for heating; 4. Compared with the standard diesel, the end oil has a higher sulfur content, and lower flash point.
Plastic Tyre Pyrolysis Oil Distillation Machine for Mini Oil Purification System 2
Plastic Tyre Pyrolysis Oil Distillation Machine for Mini Oil Purification System 3
Plastic Tyre Pyrolysis Oil Distillation Machine for Mini Oil Purification System 4
Plastic Tyre Pyrolysis Oil Distillation Machine for Mini Oil Purification System 5
PRODUCT CONFIGURATION
Plastic Tyre Pyrolysis Oil Distillation Machine for Mini Oil Purification System 6

Reactor

Plastic Tyre Pyrolysis Oil Distillation Machine for Mini Oil Purification System 7

Condenser

Plastic Tyre Pyrolysis Oil Distillation Machine for Mini Oil Purification System 8

Distillation tower

Plastic Tyre Pyrolysis Oil Distillation Machine for Mini Oil Purification System 9

Oil tank

Plastic Tyre Pyrolysis Oil Distillation Machine for Mini Oil Purification System 10

Control cabinet

Plastic Tyre Pyrolysis Oil Distillation Machine for Mini Oil Purification System 11

Flue condenser

Plastic Tyre Pyrolysis Oil Distillation Machine for Mini Oil Purification System 12

Hydroseal

Plastic Tyre Pyrolysis Oil Distillation Machine for Mini Oil Purification System 13

Dedusting scrubber

Plastic Tyre Pyrolysis Oil Distillation Machine for Mini Oil Purification System 14

Maintenance hole

SUCCESSFUL PROJECT
Plastic Tyre Pyrolysis Oil Distillation Machine for Mini Oil Purification System 15

Project in China

Plastic Tyre Pyrolysis Oil Distillation Machine for Mini Oil Purification System 16

Project in Iraq

Plastic Tyre Pyrolysis Oil Distillation Machine for Mini Oil Purification System 17

Project in Korea

Plastic Tyre Pyrolysis Oil Distillation Machine for Mini Oil Purification System 18

Project in Peru

Plastic Tyre Pyrolysis Oil Distillation Machine for Mini Oil Purification System 19

Project in Thailand

Plastic Tyre Pyrolysis Oil Distillation Machine for Mini Oil Purification System 20

Project in Canada

Plastic Tyre Pyrolysis Oil Distillation Machine for Mini Oil Purification System 21
COMPANY INTRODUCTION
Plastic Tyre Pyrolysis Oil Distillation Machine for Mini Oil Purification System 22
About MINGJIE Machinery
Henan Mingjie Environmental Equipment Co., Ltd is a high-tech environmental enterprise, covering R&D, manufacturing , sales and
exporting, We are committed to provide comprehensive solution for solid waste recycling , specializing in waste tires, waste
plastics, and oil sludge reprocessing equipment, to get fuel oil and other renewable energy.
With alomost 20 years manufacturing experience, a professional team for foreign trade and after-sale service, we take “ To Create
Sustainable Value for Clients “ as pursuit. With abundant experience and foreseeing ability of this industry, we will continuously
to provide excellent service for clients. All the products from Mingjie have been certified by CE and ISO, have been exported to
India, Pakistan, Romania, Jordan , Thailand, Malaysia, and England etc, has very stable clients and good reputation in Chinese
market, Mingjie company will continuously to create value for our clients , strive to be the No.1 in the industry.
OUR ADVANTAGES
Plastic Tyre Pyrolysis Oil Distillation Machine for Mini Oil Purification System 23
CLIENTS FROM WORLD
Plastic Tyre Pyrolysis Oil Distillation Machine for Mini Oil Purification System 24
Plastic Tyre Pyrolysis Oil Distillation Machine for Mini Oil Purification System 25
Plastic Tyre Pyrolysis Oil Distillation Machine for Mini Oil Purification System 26
Plastic Tyre Pyrolysis Oil Distillation Machine for Mini Oil Purification System 27
Plastic Tyre Pyrolysis Oil Distillation Machine for Mini Oil Purification System 28
Plastic Tyre Pyrolysis Oil Distillation Machine for Mini Oil Purification System 29
Plastic Tyre Pyrolysis Oil Distillation Machine for Mini Oil Purification System 30
Plastic Tyre Pyrolysis Oil Distillation Machine for Mini Oil Purification System 31
Plastic Tyre Pyrolysis Oil Distillation Machine for Mini Oil Purification System 32
Plastic Tyre Pyrolysis Oil Distillation Machine for Mini Oil Purification System 33
CERTIFICATE
Plastic Tyre Pyrolysis Oil Distillation Machine for Mini Oil Purification System 34
Plastic Tyre Pyrolysis Oil Distillation Machine for Mini Oil Purification System 35
Plastic Tyre Pyrolysis Oil Distillation Machine for Mini Oil Purification System 36
Plastic Tyre Pyrolysis Oil Distillation Machine for Mini Oil Purification System 37
FAQ
Q1: How can we use the distilled diesel from waste tires or plastics?
A1: 1. Can be used for heating , 2. Can be used in the low speed and heavy duty engines, like boat, diesel generator.

Q2: What can we do with the heavy oil from distillation machine?
A2: 1. Can be sold as asphalt , if there is a market at your local, 2. Can be put back into the pyrolysis machine and refine it again.

Q3: Can we produce base oil from the distillation plant?
A3: Yes, we can produce base oil from the distillation plant, but the raw materials must be used engine oil, can not be pyro-oil.

Q4: Warranty. What are the over guarantees?
A4: All the plants from Mingjie has a 12 months guarantee since the act of acceptance is signed, during the warranty period, all the problems cause by quality will be resolved by Mingjie at its own cost, which will be indicated in the contract.
