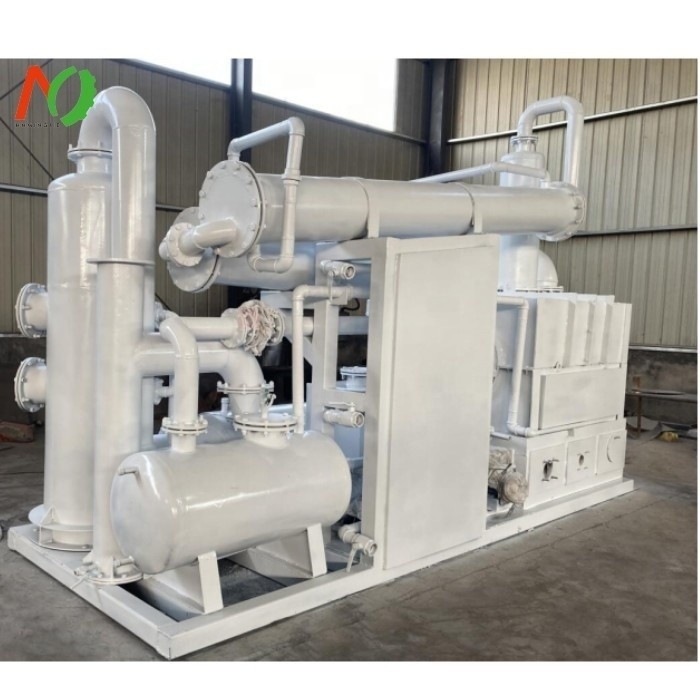

Raw Material Pyrolysis Oil to Diesel Distillation Machine for Manufacturing Plant

Product Details

Place of Origin: Henan, China

Brand Name: MINGJIE

Certification: CE ISO

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: $100,000.00/sets 1-1 sets

Packaging Details: 20 HC ,40 HC, 40 FR CONTAINER
Waste Tire Oil Recycling To Diesel Used Oil Stove Burner Oil Distillation Machine

Supply Ability: 5 Set/Sets per Month

Get Best Price

Product Details

Product Description

Highlight:

Applicable Industries:	Manufacturing Plant, Other, Distillation Plant	Showroom Location:	Philippines, Brazil, Thailand, South Korea
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	New Product 2020	Warranty Of Core Components:	1 Year
Core Components:	Distillation Reactor, Distillation Tower, Oil Burners, Control Cabinet	Condition:	New
Flow:	50L/min Machine Oil Purifier	Voltage:	220v/380v(3 Phase) Can Customize
Power:	10kw, 10KW	Dimension(LWH):	D1200*H2200mm
Weight:	15000 Kg	Warranty:	1 Year
Name:	Pyrolysis Oil Distillation Plant	Capacity Requested:	2T/BATCH
Raw Material:	Pyrolysis Oil Used Engine Oil	Material Of Reactor:	Q245R
Color:	Customer's Requirement	Environmental Protection:	Eco-friendly
Rate Of Oil Yield:	70-80%	Pressure:	Vacuum,negative Pressure
Port:	Qingdao

Applicable Industries:	Manufacturing Plant, Other, Distillation Plant
Showroom Location:	Philippines, Brazil, Thailand, South Korea
Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided
Marketing Type:	New Product 2020
Warranty Of Core Components:	1 Year
Core Components:	Distillation Reactor, Distillation Tower, Oil Burners, Control Cabinet
Condition:	New
Flow:	50L/min Machine Oil Purifier
Voltage:	220v/380v(3 Phase) Can Customize
Power:	10kw, 10KW
Dimension(LWH):	D1200*H2200mm
Weight:	15000 Kg
Warranty:	1 Year
Name:	Pyrolysis Oil Distillation Plant
Capacity Requested:	2T/BATCH
Raw Material:	Pyrolysis Oil Used Engine Oil
Material Of Reactor:	Q245R
Color:	Customer's Requirement
Environmental Protection:	Eco-friendly
Rate Of Oil Yield:	70-80%
Pressure:	Vacuum,negative Pressure
Port:	Qingdao

Raw Material Pyrolysis Oil to Diesel Distillation Machine for Manufacturing Plant

Company Profile

About MINGJIE Machinery

Henan Mingjie Environmental Equipment Co., Ltd is a high-tech environmental enterprise, covering R&D, manufacturing , sales and
exporting, We are committed to provide comprehensive solution for solid waste recycling , specializing in waste tires, waste
plastics, and oil sludge reprocessing equipment, to get fuel oil and other renewable energy. With almost 20 years manufacturing
experience, a professional team for foreign trade and after-sale service, we take “ To Create Sustainable Value for Clients “ as
pursuit. we will continuously to provide excellent service for clients. All the products from Mingjie have been certified by CE
and ISO, have been exported to India, Pakistan, Romania, Jordan , Thailand, Malaysia, and England etc, has very stable clients and
good reputation in Chinese market.

Features At A Glance

Pyrolysis Oil Distillation Plant

Activated clay has strong chemical and physical adsorption function to the impurities, which will help to improve the color of theoil and make it more stable.

pyrolysis oil distillation plant 3D Drawing( for your reference)

pyrolysis oil distillation plant The flowing of oil refining process:

1. Sediment

Waste oil or pyrolysis oil will be collected and stored in big tanks, make the big size impurities sink to the bottom, when

loading , leave the bottom impurities.

2. Distillation

Pumping the oil into the distillation reactor, and start heating, highest temperature in the system should be around 350 ℃，under vacuum production environment, to keep safety of operation, liquid oil heated to become oil gas, then condensed into liquid oil again and stored in the oil tank, this process help to separate light oil from the impurities.

3. Acid washing

Acid washing is to mix a fix quantity of H2SO4 with the oil, to make the impurities precipitate out, to improve the color and smell of the oil, the concentration of the H2SO4 should be more than 98%, Concentrated sulfuric acid has strong oxidizing property, could generate sulfonation, oxidation, esterification with the nitrogen, oxygen, sulphur containing compounds, thus, this process also has very obvious function to remove the sulphur in the oil.

4. Alkaline Washing

The main purpose of Alkaline washing to neutralize the acid in the oil, the make the PH of the oil to be 7.

5. Activated clay treatment

Activated clay has strong chemical and physical adsorption function to the impurities, which will help to improve the color of the oil and make it more stable.

6. Filter press

Filter process is to separate the impurities in the oil by pressing the oil through filter cloth, the oil will be cleaner

after this process.

Fuel Oil

Distillation Plant

Diesel

Model for Choose

Model	MJZ-2	MJZ-3	MJZ-6	MJZ-10	MJZ-20
Capacity	1-2T/Batch	3T/D	6T/D	10T/D	20T/D
Power Consumption	10kw	15kw	22.5kw	42kw	46kw
Operation	Batch	Batch	Batch	Batch	Batch
Raw material	Used engine oil, pyrolysis oil, used transformer oil, used lubricating oil
Final products	Non-standard diesel, diesel oil, base oil
Oil yield rate	80-85%
Working pressure	Negative
Construction	Vertical type
Cooling method	Water cooling
Fuel for heating	LPG, Diesel, Natural gas

Customer Photos

Why Choose Us

Successful Project

Project in Czech

Project in Germany

Project in China

Certifications

FAQ

Q1： How can we use the distilled diesel from waste tires or plastics?

A1： a. can be used for heating .
b. can be used in the low speed and heavy duty engines, like boat, diesel generator,

Q2： What can we do with the heavy oil from distillation machine ?
A1： a. can be sold as asphalt , if there is a market at your local.

b. can be put back into the pyrolysis machine and refine it again.

Q3 ：What is the final products from distillation system?
A3： a. heavy fuel oil ( about 5%-8% ), b. light diesel fuel (80-85%), c. Combustible gas (7%-10%),
